2008 Massey Ferguson 3645
Request a Quote Financing Calculator Request a Brochure Financing Form

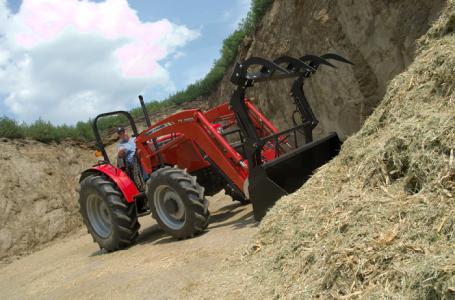

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The 3600 Series from Massey Ferguson is the utility tractor for people who want more versatility, durability, and extra comfort and convenience features that make them a dream to drive and a pleasure to own.


Turbo-charged SisuDiesel™ engines – plus an array of features deliver productive power and reliable performance to handle baling hay, feeding livestock, mowing roadsides, or moving big loads. In fact, no other utility tractor combines so much efficiency, flexibility and ease of operation. You’ll appreciate the extraordinary reliability, versatility and comfort designed and built into every 3600 Series tractor.

  • Engine: All three 3600 Series tractor models feature impressive turbo-charged SisuDiesel engines. These ingeniously designed 3-cylinder engines deliver more torque, greater reliability and superior fuel efficiency – no matter what the job.
  • Transmission: Choose from the standard 8 x 8 SynchroShuttle transmission or the available 12 x 12 PowerShuttle, to best complement your operation.
  • Hydraulics: The 3600 series features an open center system that is capable of supplying 15.8 gpm to the rear remotes.
  • 3 Point Hitch: Strong 3-point linkage on every 3600 Series tractor boasts an impressive 5,512 pounds of lift capacity, so you can count on optimum implement accuracy and responsive control, even with the largest implements.
  • PTO: The standard 540 independent PTO makes it easy to use a wide array of implements. For those tasks requiring less power, choose the optional 540 economy PTO.
  • Operator's Area: Spacious and uncluttered footstep and cab versions offer customers their choice in operator comfort.
  • Serviceability: A one-piece flip up hood allows instant access to all routine maintenance and service points.
  • Accessories: Customize your tractor with extendible lower links, factory installed joystick, instructor’s seat, horizontal exhaust, or a variety of other accessories to best suit your needs.
Engine
  • Engine Hp @ rated engine rpm: 91 @ 2,200
  • PTO HP @ rated engine rpm: 75 @ 2,200
  • SisuDiesel™ engine model: 33 DTA
  • Cylinders and aspiration: 3-Turbocharged
  • Total displacement: in. (liters): 201 (3.3)
  • Fuel tank capacity platform: US gal. (liters): 29 (109.7)
  • Fuel tank capacity cab: US gal. (liters): 29 (109.7)
Clutch
  • Type Standard Transmission (8x8 SynchroShuttle): Dry single disc
  • Diameter: in. (mm): 12 (305)
  • Type Optional Transmission (12x12 PowerShuttle): Wet-Multi Disc
Transmission
  • Type Standard Platform: 8F x 8R MS
  • Type Optional Platform: 12F x 12R PS
  • Type Standard Cab: 8F x 8R MS
  • Type Optional Cab: 12F x 12R PS
Brakes & Final Drives
  • Final drives: Planetary
  • Brakes: Wet multi disc
PTO Type
  • Type Standard Platform: Independent
  • Standard Speed Platform/Cab: 540
  • Type Standard Cab: Independent
  • Optional Speed Platform/Cab: Shiftable 540/540E
Hydraulics
  • System type: Open center
  • Pump(s) type: Engine Driven Gear
  • Total flow: gpm (lpm): 22.4 (84.8)
  • Max flow @ remotes: gpm (lpm): 15.8 (59.8)
  • Remote Valves: 2 standard
Three Point Hitch
  • ASAE category: I-II
  • Extendable Lower Links: Option
  • Stabilizers: Telescopic
  • Lift capacity @ Hitch Point lbs. (kg): 5,512 (2,500)
Weight & Dimensions
  • Rear tire used for measurement: 16.9R30
  • Wheelbase: in. (mm) 2/4wd: 81.88 (2,080)
  • Overall length: in. (mm): 148 (3,759)
  • Min. overall width: in. (mm): 76 (1,930)
  • Height top of ROPS: in. (mm): 99 (2,515)
  • Height top of Cab: in. (mm): 101.18 (2,570)
  • Ground clearance @ front axle: in. (mm): 14.56 (370)
  • 2WD platform approx. shipping weight: lbs. (kg): 5,071 (2,300)
  • 4WD platform approx. shipping weight: lbs. (kg): 5,512 (2,500)
  • 2WD cab approx. shipping weight: lbs. (kg): 6,174 (2,800)
  • 4WD cab approx. shipping weight: lbs. (kg): 7,056 (3,200)

Specifications

Engine
Engine Manufacturer SISU Diesel
Engine Type 3-Cylinder, Turbo Diesel
Horsepower 91 hp
PTO HP 75 hp
Rated RPM 2200 rpm
Specifications
Wheelbase 81.88 in. (2080 mm)
Height Top of ROPS: 99 in. (2515 mm), Top of Cab: 101.18 in. (2570 mm)
Width 76 in. (1930 mm)
Weight 2WD Platform: 5071 lbs. (2300 kg), 4WD Platform: 5512 lbs. (2500 kg)
Ground Clearance 14.56 in. (370 mm)
General
Fuel Capacity 29 gal. (109.7 l)
Transmission Standard: 8F x 8R MS, Optional: 12F x 12R PS
Brakes Wet Multi Disc
Hydraulics Open Center
Drive Type 2WD or 4WD

Compare Models

 Print








Year 2008
Manufacturer Massey Ferguson
Model 3645
Style Utility
Engine
Engine Manufacturer SISU Diesel
Engine Type 3-Cylinder, Turbo Diesel
Horsepower 91 hp
PTO HP 75 hp
Rated RPM 2200 rpm
Bore and Stroke
General
Fuel System
Fuel Capacity 29 gal. (109.7 l)
Transmission Standard: 8F x 8R MS, Optional: 12F x 12R PS
Brakes Wet Multi Disc
Hydraulics Open Center
Drive Type 2WD or 4WD
Specifications
Wheelbase 81.88 in. (2080 mm)
Height Top of ROPS: 99 in. (2515 mm), Top of Cab: 101.18 in. (2570 mm)
Width 76 in. (1930 mm)
Weight 2WD Platform: 5071 lbs. (2300 kg), 4WD Platform: 5512 lbs. (2500 kg)
Ground Clearance 14.56 in. (370 mm)
Tire Size
