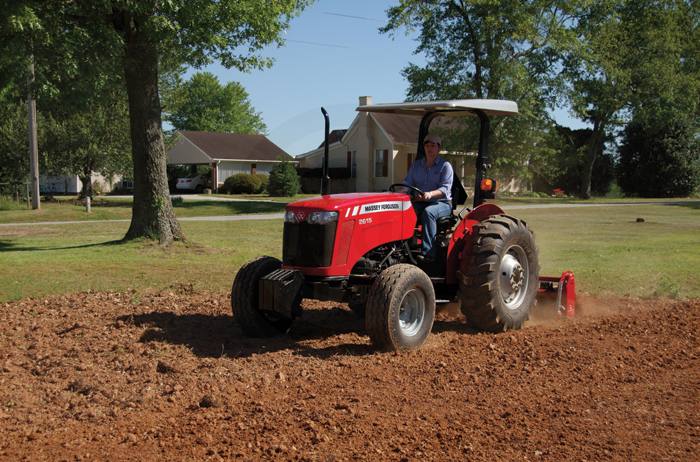

2008 Massey Ferguson 2615
Request a Quote Financing Calculator Request a Brochure Financing Form
Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Whether you’re mowing, loading, landscaping or feeding livestock, the Massey Ferguson 2600 Series utility tractors let you enjoy your chores and gives you more time to relax when the work’s all done.


Innovative styling, user-friendly controls and a roomy, comfortable platform put you at ease. Reliable, easy-starting diesel engines deliver an unbeatable combination of performance and fuel efficiency.


The available 8x8 SynchroShuttle transmission makes jobs like loader work faster and easier. A Ferguson 3-point hitch gives you accurate control of implements on even the roughest terrain. And this rugged model let you take on your chores, your way.

  • Engine: All three 2600 Series tractor models feature the naturally aspirated direct-injection Simpson® diesel engine that delivers dependable, fuel-efficient performance.
  • Transmission: Choose from the standard 8x2 CenterShift transmission or the 8x8 SynchroShuttle transmission to best complement your operation.
  • Hydraulics: The 2600 Series have three separate hydraulic systems that deliver maximum hydraulic flow to the Steering, 3-Point Hitch & Auxiliary Hydraulics.
  • 3 Point Hitch: Strong 3-point linkage on every 2600 Series tractors boast up to 4,520 pounds of lift capacity, so you can count on optimum implement accuracy and responsive control, even with the largest implements.
  • PTO: All three 2600 Series models are available with a Live PTO or an Independent PTO allowing the customer to choose the best PTO for their operation.
  • Operator's Area: The new 2600 Series offers innovative styling, rugged construction and a thoughtfully designed operator’s area.
  • Serviceability: A one-piece flip up all-steel hood allows convenient access to all routine maintenance and service points.
  • Accessories: Customize your tractor with auxiliary hydraulic valves, extendible lower links, horizontal exhaust, or a variety of other accessories to best suit your needs.
  • Tires: All Massey Ferguson 2600 series come standard with R1-Agricultural tires. R4-Industrial Tires are available on certain models.
  • Loaders: Two loaders are available for the 2600 series tractors. The L200 loader is available for the two wheel drive models. The DL250 is available for all four wheel drive models.
Engine
  • SAE Gross Engine HP @ rated engine rpm: HP (kW): 49 (36.5) @ 2,250
  • PTO HP @ rated engine rpm (LIVE PTO): HP (kW): 42 (31.3) @ 2,250
  • PTO HP @ rated engine rpm (Independent PTO): HP (kW): 40 (29.8) @ 2,250
  • SIMPSON engine model : SJ327E Tier II
  • Cylinders and aspiration: 3 - Natural
  • Total displacement: in. (liters): 164.8 (2.7)
  • Cold Starting Aid:: Thermostart
  • Fuel tank capacity: US gal. (liters): 11.1 (42)
Clutch
  • Type with Live PTO: Dry Dual Disc
  • Diameter Traction Clutch: in. (mm): 12 (305)
  • Diameter of PTO Clutch: in. (mm): 10 (254)
  • Type with Independent PTO: Dry Single Disc
  • Diameter Traction Clutch: in. (mm): 12 (305)
  • Hydraulic Engaged Independent PTO Clutch:
Transmission
  • Type Standard: 8F x 2R
  • Type Optional: 8F x 8R Shuttle
Brakes & Final Drives
  • Final drives with 8x2 Transmission: Direct Drive
  • Final drives with 8x8 Shuttle Transmission: Outboard Planetary
  • Brakes: Inboard Wet Multi Disc
  • Differential Lock: Foot Operated
PTO Type
  • Type Standard (8x2 Transmission Only): Live (Dual Stage Dry Clutch)
  • Type Optional: Independent (Electro-hydraulically engaged Multi Disc Wet Clutch)
  • PTO Speed @ Engine RPM (6 Spline Shaft): 540 @ 1,790 ERPM
Hydraulics
  • System type: Open Center & Modified Closed Center
  • Pump type: Gear & Scotch Yoke
  • Total flow: gpm (lpm) (Steering+Aux+3 point pump): 22.4 (85)
  • Steering pump flow: gpm (lpm): 6.7 (25)
  • Auxiliary pump flow: gpm (lpm): 11 (42)
  • Three point hitch pump: gpm (lpm): 4.7 (18)
  • Combining Valve: (combines auxiliary & 3-point flow): Optional
  • Max flow @ remotes: gpm (lpm) (Aux + 3-point hitch): 15.7 (59)
  • Remote Valves Standard:: None
  • Remote Valves Optional:: 1 or 2 Rear Valves
Three Point Hitch
  • ASAE category: Category I & II Cross Drilled Ball Ends
  • Extendable lower links: Optional
  • Stabilizers: Chain Type
  • Optional stabilizers: Telescopic
  • Lift capacity @ hitch point - horizontal position (kg): 3,195 (1,450)
Electrical
  • Battery CCA: 622 (SAE)
  • Alternator amperage: 36
  • Trailer outlet: Yes
  • Horn: Yes
Weight & Dimensions
  • Rear tire used for measurement: 13.6x28
  • Wheelbase: in. (mm) 2/4wd: 76 (1,937) / 77 (1,952)
  • Overall length: 129 (3,285) / 130 (3,300)
  • Min overall width: in. (mm): 66 (1,670)
  • Min Tread Setting: in. (mm): 52 (1,320)
  • Height top of ROPS: in. (mm: 92 (2,345)
  • Ground clearance @ drawbar: in. (mm): 10 (255)
  • 2WD platform approx. shipping weight: lbs. (kg): 4,365 (1,980)
  • 4WD platform approx. shipping weight: lbs. (kg): 4,820 (2,185)

Specifications

Engine
Engine Manufacturer Simpson
Engine Type 3-Cylinder, Tier II, Natural Aspiration
Horsepower 49 hp (36.5 kW)
PTO HP (Live) 42 hp (31.3 kW)
Rated RPM 2250 rpm
Specifications
Wheelbase 2WD: 76 in. (1937 mm), 4WD: 77 in. (1952 mm)
Height (Top of ROPS) 92 in. (2345 mm)
Width 66 in. (1670 mm)
Weight 2WD: 4365 lbs. (1980 kg), 4WD: 4820 lbs. (2185 kg)
Ground Clearance 10 in. (256 mm)
General
Fuel Capacity 11.1 gal. (42 l)
Transmission Standard: 8F x 2R; Optional: 8F x 8R Shuttle
Brakes Inboard Wet Multi Disc
Hydraulics Open Center & Modified Closed Center
Drive Type 2WD or 4WD

Compare Models

 Print








Year 2008
Manufacturer Massey Ferguson
Model 2615
Style Utility
Engine
Engine Manufacturer Simpson
Engine Type 3-Cylinder, Tier II, Natural Aspiration
Horsepower 49 hp (36.5 kW)
PTO HP (Live) 42 hp (31.3 kW)
Rated RPM 2250 rpm
Bore and Stroke
General
Fuel System
Fuel Capacity 11.1 gal. (42 l)
Transmission Standard: 8F x 2R; Optional: 8F x 8R Shuttle
Brakes Inboard Wet Multi Disc
Hydraulics Open Center & Modified Closed Center
Drive Type 2WD or 4WD
Specifications
Wheelbase 2WD: 76 in. (1937 mm), 4WD: 77 in. (1952 mm)
Height (Top of ROPS) 92 in. (2345 mm)
Width 66 in. (1670 mm)
Weight 2WD: 4365 lbs. (1980 kg), 4WD: 4820 lbs. (2185 kg)
Ground Clearance 10 in. (256 mm)
Tire Size
