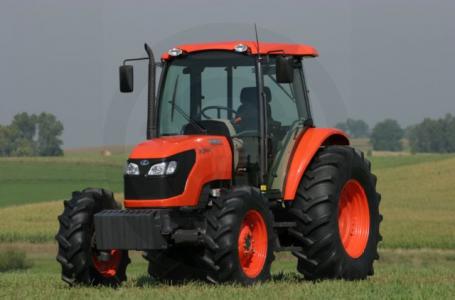

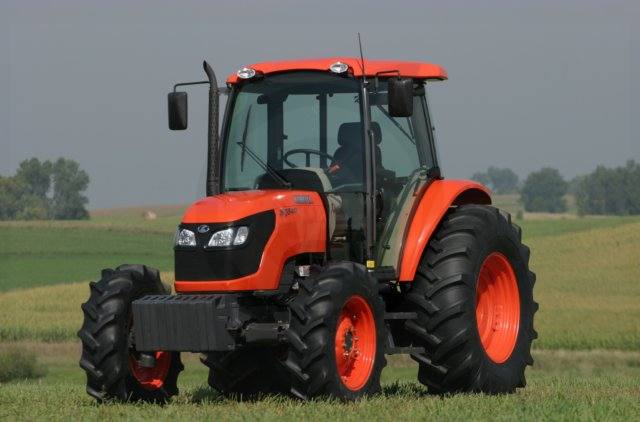

2008 Kubota M9540 4WD Cab
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

  • CAB CORNER EXHAUST PIPE: The exhaust pipe on the M40-Series cab models has been repositioned along the right side corner post, this provides the operator with a clear and unobstructed field of view.
  • ARCHED BEAM ROOF LINE: The arched beam in the front of the cab and relocated A/C components allowed MSeries designers to extend the height of the roof. This feature not only increases headroom, it also increases overall visibility, especially while using the loader, as the bucket can be easily seen at maximum height in the power hold position.
  • SLIDE-OUT AIR CONDITIONER CONDENSER: Servicability was first and foremost in this mew design. The air conditioner condenser slides out for easy access, maintenance, and cleaning. The hydraulic cooler and radiator are exposed for easy cleaning too.
  • 4WD FRONT AXLE: The bevel-gear front axle provides the M40-Series with better all-around maneuverability, especially for jobs in tight spaces. The greater front-axle ascillating angle also offers increased lateral operation on uneven terrain. The increased turning angle of 55 degrees ensures the tightest turn possible in a 4WD tractor.
  • (E-CDIS) DIRECT INJECTION ENGINE: Kubota's revolutionary new center-direct injection system (E-CDIS) engines offer more durability, power and fuel efficiency. These technologically advanced engines also comply with EPA Tier II Emissions Standards.
  • F8/R8 TRANSMISSION(F12/R12 TRANSMISSION OPTION): Synchronized four speeds of the main shift and high/low range supply tractors with 8 Forward and 8 Reverse speeds. The main shift allows you to shift 'on the fly' making operation smooth. Tailor this transmission to your needs by choosing from a hydraulic or synchronized shuttle transmission. For heavy-duty work the hydraulic-shuttle models of the M8540 and M9540 can be equipped with an F12/R12 transmission. This transmission features six speeds of the main shift and a hig/low range giving it a total of 12 Forward and 12 Reverse speeds.
  • FRONT WIPER: To increase visibility on rainy days and operator safety a pantograph style front wiper clears a wider coverage area.
  • DIGITAL PANEL: A new digital LED panel makes viewing vital functions of your M-Series tractor clear and easy. View travel speed, PTO revolution and hour meter information digitally. Analog indicators include a large tachometer, temperature gauge and fuel gauge. A battery warning light has also been added to the M-Series to prevent surprise battery failures.
  • NEW HOOD DESIGN: The sleek new slanted steel hood design looks great, but there's far more to it than meets the eye. It offers greater visibility over the hood of the tractor thereby increasing your field of view especially during loader operation. This hood easily opens to provide convenient maintenance of the engine, AC condenser, radiator and air filter.
  • WRAP AROUND GRILL: By allowing a high volume of air to flow in, the engine stays cooler. At the same time, a drop in the airflow velocity lowers the potential for debris being pulled into the grill obstructing the A/C condenser and radiator. Keeping the system cleaner up front allows prolonged operation.
  • TRANSMISSION PARKING LOCK: An easy-to-operate transmission parking lock, located beside the main shift, is now independent from the main brakes. This lock is extremely durable and reliable. A key factor in its design is its ability to be unlocked easily, even when parked on uneven terrain.
  • ULTRA GRAND CAB: The Ultra Grand Cab has been completely redesigned. Rounded glass and the arched beam roofline on the cab gives the operator more room and greater visibility. The height of the cab offers more headroom, and key operational levers and switches have been moved to the right side console for easier access. For greater visibility, the exhaust pipe has been relocated and the windshield now boasts a pantograph wiper.
  • SHUTTLE SHIFT LEVER: The Synchro-Shuttle provides easy direction changes, simply clutch, shift and go - coming to a complete stop is not necessary. General tractor productivity is increased over transmissions without equal number of speeds. Exemplifying shuttle shift operation is the optional Hydraulic Shuttle on all 4-wheel drive models.
  • Designed specifically for loader applications, this tough clutch system is just what the loader ordered! The hydraulic shuttle also includes a wet main clutch for long life. Smooth inching and shuttle movements are special features you'll appreciate.
  • HEADLIGHTS: The M40-Series now comes with halogen headlights and corner lamps. These lights are not only more efficient; they also provide more illumination from dusk-to-dawn expanding your work hours.
  • OPERATOR'S PLATFORM: Full-Flat Deck (Cab model) When operating a tractor, space comes at a premium. The M-Series flat deck neatly repositions most of the operational levers, including main shift and range lever, auxiliary control lever, hand-throttle, position draft control lever and PTO clutch lever, to the right of the seat. This offers the operator more legroom and far more comfort.
  • HYDROSTATIC POWER STEERING WITH TILT WHEEL: Improved Steering Wheel & Column Design -
    The tilt steering column of the new M-Series boasts a couple new features. Designed to accommodate operators of many different sizes, the wheel and shuttle lever tilt together. To complement this feature, an easy-to-use foot pedal has also been added.
  • ROUNDED GLASS: We’ve rounded the cab glass of the new Ultra Grand Cab therefore increasing the length of the cab by 2 inches and the width by 6.3 inches. This change provides the operator with more visibility and a more spacious feel—ideal for long days in the field. Furthermore, we’ve increased the glass coverage area on the cab door, which makes it easier to get in and out of the cab, by moving the side post rearward to create a wider opening.
  • DELUXE SEAT: Reclining, weight-adjusted seats are standard equipment on all M-Series models.These comfortable seats were specifically designed to absorb shock, significantly reducing operator fatigue. We’ve also added a convenient manual holder in the seat back on ROPS models.
  • WIDE FENDERS: Wider and rounded fenders protect the operator from mud splashes. ROPS models are equipped with large handles on both sides for easy mounting and dismounting.
  • HEATER/AIR CONDITIONER SYSTEM: The heating and cooling main unit is located under the seat. The overall air circulation in the cab has been optimized by the cab’s rounded glass as well as by placing the air outlets in the dash tower to keep you cooler on hot summer days and warmer on cold mornings, for year around environment control.
  • 7-PIN TRAILER COUPLER: The 7-pin trailer coupler is standard; it will connect directly to 7-pin couplers for taillights, brake lights, and turn signals.
  • INDEPENDENT HYDRAULIC PTO: Pulling, lifting, cutting or baling; the standard 540 rpm hydraulic independent PTO (1000 rpm is optional on 8540/M9540) of the Kubota M40-Series tractors makes your toughest work easier. Self modulating engagement with a light touch means implements like a rear cutter engage smoothly and the PTO brake engages when the clutch is shut off and securely holds the PTO shaft. The independent PTO clutch hydraulically engages and disengages on the go, there is NO DRY CLUTCH DISK. This means the efficiency of PTO-driven implements like hay equipment, spreaders, or sprayers are optimized.
  • 3-Point Hitch: The Category II 3-point hitch provides fast and simple attachment of rearmounted implements. The standard capacity of the M8540 and M9540 is 4630 lbs (2100kg), with an option of 7055 lbs (3200kg).
  • Lift Rods With Float Positions: The floating lift rods are standard on both sides giving the M8540 and M9540 M-Series tractors a smoother ride and enhanced traction while using the 3-point hitch, especially on uneven terrain.
  • Telescopic Lower Link Ends: The standard telescopic lower link ends further facilitate implement attachment by extending in and out of the hitch arm.
  • High Lift Capacity: Large diameter cylinders boost lifting power by as much as 50%--perfect for large implements and larger farm uses. They are optional on all M8540 and M9540 models, however they are standard on HD12/HDC12 12-speed models.
  • RADIO READY CAB: The M-Series cabs come pre-wired for our optional CD/radio with weather band or cassette radio with weather band. Radio installation takes only a few minutes.
  • REAR WIPER (OPTIONAL): An optional rear wiper and washer is available.
Specifications
  • Engine Model: KUBOTA-V3800TIE2
  • Engine Type: 4-cylinder inline, direct inject. w/turbocharger
  • SAE Net Power: 94.5 hp (70.5 kw)
  • PTO horsepower: 84 hp (62.7 kw)
  • Total Displacement: 230 cu. in.(3769 cc)
  • Bore X Stroke: 3.94 in. X 4.72 in. (100 mm X 120 mm)
  • Rated speed: 2600 rpm
  • Fuel tank capacity: 29.1 gal. (110 l)
  • Alternator/Battery: 60 Amps / 12V 900 CCA
  • Air cleaner: 8 in. dry, dual element
  • Muffler / Exhaust Pipe: Right Side Corner-post vertical exhaust pipe / Underhood muffler
  • Transmission - No. of speeds: 8F/8R (12F/12R optional with hydraulic shuttle)
  • Main gear shift: 4-speed main transmission, synchronized shift (6 speed opt. w/hydraulic shuttle)
  • Range gear shift: 2-speed High / Low
  • Shuttle shift: Synchro Shuttle Standard
  • Creep Speed (Cassette type): Optional (0.26 mph - .81 mph)
  • Max. travel speed: 20.9 mph (33.6 km/h) @Maximum engine rpm
  • Main clutch type/diameter: Synchro Shuttle, cerametallic button dry clutch 12.8 in. (325 mm), Hydraulic Shuttle = Mult-Plate wet disc clutch
  • Brake type: Hydraulically operated wet disc brakes
  • Front wheel drive system: Bevel gear type, with Easy-To-Shift 4wd engagement whiling rolling
  • PTO type: Live-Independent PTO, Hydraulically operated wet clutch, w/PTO brake
  • PTO Speed: 540 rpm (6 splines) standard, and optional 540/1000 rpm (21 splines, two shafts)
  • Pump flow (Hitch & remotes): 17.0 gpm (64.3 l/min)
  • Pump flow (Power steering): 6.1 gpm (23.0 l/min)
  • 3-point hitch (Category II): Telescopic lower link ends, Telescopic stabilizers
  • Control system: Mechanical position and mixed draft control, Top link draft sensing
  • Lift capacity 24" behind lift point: Standard 4630 lbs. (2100 kg) and 7055 lbs. (3200 kg) optional on 8 Speed models, 7055 lbs. (3200 kg) is standard on HD12/HDC12, 12-speed models
  • Remote valves: 1 standard (2nd, 3rd or Flow control valve optional)
  • Steering: Hydrostatic power steering
  • Operator area: ISO-mounted flat deck, Hanging Pedals, Tilt steering wheel
  • Seat: Reclining, full adjustment (height, weight, fore & aft.), arm rests, retractable seat belt
  • Lighting: 2 headlights, 2 corner lights, 2 tail lights, 2 frt. and 4 rear safety flashers two frt worklights, 2 rear work lights.
  • Standard Cab Features: Arched Beam roof line, Heater/Air conditioner, Sun visor, Front wiper/washer, Beverage holder, 12V/30 amp 3-Pin Electric outlet, Tinted glass, 2 external mirrors, 3-Position switch for Interior light 7-pin Trailer electric outlet
  • Wheelbase: 88.6 in. (2250 mm)
  • Overall width (minimum): 78.0 in. (1900 mm)
  • Overall length: 148.0 in. (3760 mm)
  • Overall height : 101.2 in. (2570 mm)
  • Crop clearance: 18.3 in. (465 mm)
  • Tread width Front 2WD: 56.7 in. - 72.4 in. (1440 mm -1840 mm)
  • Tread width Front 4WD: 59.8 in. - 63.8 in. (1520 mm - 1620 mm)
  • Tread width Rear: 59.8 in. - 75.6 in. (1520 mm - 1920 mm)
  • Turning radius (w/o brake): 13.5 ft. (4.1 m)
  • Weight w/Standard tire/Steel dish): 5093 lbs. (2310 kg) / 5512 lbs. (2500 kg)
  • Standard front tire: 12.4-24
  • Standard rear tire: 18.4-30
Front Loader
  • Joystick Control
  • Two Position Boom Cylinders
  • Protected Cylinder Tubes
  • Roundback Bucket
  • Single Piece, Cast Steel Main Frames
  • Quick-Mount Attach/Detach
  • Skid Steer-Type Quick Coupler
  • 4-Bar Linkage
  • Kubota Shockless Ride (KSR) (Optional)
  • Single-Lever Hydraulic Quick Coupler (Optional)
  • 3rd Function Valve (Optional)
  • Hydraulic Self-Leveling Valve (Optional)
Optional Equipment
  • 3PT High Capacity lift cylinders (8-Speed Models)
  • Front weight bumper (std 2-wd)
  • Front weights, Rear wheel weights
  • Drawbar clevis
  • 2nd and 3rd remote valves
  • Cassette type Creep speed
  • Flow control valve
  • Dual Speed PTO
  • Rear axle spacer kit
  • Cab Radio cassette or CD Player with 7-Channel weather band
  • Grill Guard
  • Down Exhaust muffler
  • Deluxe canopy for ROPS Models.

Specifications

Engine
Engine Manufacturer Kubota
Engine Type 4-cylinder inline, direct inject. w/turbocharger; Total Displacement: 230 cu. in.(3769 cc)
Horsepower 94.5 hp (70.5 kw)
PTO HP PTO horsepower: 84 hp (62.7 kw); PTO type: Live-Independent PTO, Hydraulically operated wet clutch, w/PTO brake
Rated RPM 2600 rpm
Bore and Stroke 3.94 in. X 4.72 in. (100 mm X 120 mm)
Specifications
Wheelbase 88.6 in. (2250 mm)
Height 101.2 in. (2570 mm)
Width 78.0 in. (1900 mm)
Weight 5093 lbs. (2310 kg) / 5512 lbs. (2500 kg)
Tire Size Standard front tire: 12.4-24; Standard rear tire: 18.4-30
General
Fuel System Direct Injection
Fuel Capacity 29.1 gal. (110 l)
Transmission No. of speeds: 8F/8R (12F/12R optional with hydraulic shuttle); Main gear shift: 4-speed main transmission, synchronized shift (6 speed opt. w/hydraulic shuttle); Range gear shift: 2-speed High / Low
Brakes Hydraulically operated wet disc brakes
Hydraulics Pump flow (Hitch & remotes): 17.0 gpm (64.3 l/min); Pump flow (Power steering): 6.1 gpm (23.0 l/min); 3-point hitch (Category II): Telescopic lower link ends, Telescopic stabilizers; Control system: Mechanical position and mixed draft control, Top link draft sensing; Lift capacity 24" behind lift point: Standard 4630 lbs. (2100 kg) and 7055 lbs. (3200 kg) optional on 8 Speed models, 7055 lbs. (3200 kg) is standard on HD12/HDC12, 12-speed models; Remote valves: 1 standard (2nd, 3rd or Flow control valve optional); Steering: Hydrostatic power steering

Compare Models

 Print








Year 2008
Manufacturer Kubota
Model M9540 4WD Cab
Style Utility
Engine
Engine Manufacturer Kubota
Engine Type 4-cylinder inline, direct inject. w/turbocharger; Total Displacement: 230 cu. in.(3769 cc)
Horsepower 94.5 hp (70.5 kw)
PTO HP PTO horsepower: 84 hp (62.7 kw); PTO type: Live-Independent PTO, Hydraulically operated wet clutch, w/PTO brake
Rated RPM 2600 rpm
Bore and Stroke 3.94 in. X 4.72 in. (100 mm X 120 mm)
General
Fuel System Direct Injection
Fuel Capacity 29.1 gal. (110 l)
Transmission No. of speeds: 8F/8R (12F/12R optional with hydraulic shuttle); Main gear shift: 4-speed main transmission, synchronized shift (6 speed opt. w/hydraulic shuttle); Range gear shift: 2-speed High / Low
Brakes Hydraulically operated wet disc brakes
Hydraulics Pump flow (Hitch & remotes): 17.0 gpm (64.3 l/min); Pump flow (Power steering): 6.1 gpm (23.0 l/min); 3-point hitch (Category II): Telescopic lower link ends, Telescopic stabilizers; Control system: Mechanical position and mixed draft control, Top link draft sensing; Lift capacity 24" behind lift point: Standard 4630 lbs. (2100 kg) and 7055 lbs. (3200 kg) optional on 8 Speed models, 7055 lbs. (3200 kg) is standard on HD12/HDC12, 12-speed models; Remote valves: 1 standard (2nd, 3rd or Flow control valve optional); Steering: Hydrostatic power steering
Drive Type
Specifications
Wheelbase 88.6 in. (2250 mm)
Height 101.2 in. (2570 mm)
Width 78.0 in. (1900 mm)
Weight 5093 lbs. (2310 kg) / 5512 lbs. (2500 kg)
Ground Clearance
Tire Size Standard front tire: 12.4-24; Standard rear tire: 18.4-30
